Heavy Duty 30kg Payload Pan Tilt Unit with 360° Continuous Rotation and IP66 Protection

Name: Heavy Duty 30kg Payload Pan Tilt Unit with 360 Continuous Rotation and IP66 Protection
Brand: Hope-Wish
Price: 500 USD

Wholesale Heavy Duty 30kg Payload Pan Tilt Unit with 360° Continuous Rotation and IP66 Protection from china suppliers

Model Number : HP–S030W-PT

MOQ : 1

Delivery Time : 5~10 days

Supply Ability : 2000 units per month

Payment Terms : T/T,L/C,Western Union

Price : 500

Certification : CE,FCC, ISO

Brand Name : Hope-Wish

Place of Origin : China

Packaging Details : Wooden packaging

Contact Now

Heavy Duty Pan Tilt Units – 30kg Industrial Motorized Positioning

Payload Capacity: 30 kg
Net Weight: 14 kg
Rotation Range: Pan 360° continuous; Tilt -60° to +20°
Scanning Speed: Pan 0.01°–20°/s; Tilt 0.01°–10°/s
Positioning Accuracy: ±0.1° (Repeatability)
Ingress Protection: IP66
Automated Patrol: 2 routes, 40 presets per route
Communication Protocol: PELCO-D
Interface: RS422
Operating Temperature: -25°C to +65°C
Mounting Type: Fixed Installation

Heavy Duty 30kg Payload Pan Tilt Unit with 360° Continuous Rotation and IP66 Protection

Technical Parameters:

Model	HP–S030W-PT
Rotation Angle	Pan: 0° to 360° ; Tilt: -60° to +20°
Rotation Speed	Pan: 0.01 to 10°/s ; Tilt: 0.01 to 5°/s
Preset Positions	200
Positioning Accuracy	±0.1°
Power-On Self-Test	Support
Angle Feedback	Query-based / Real-time
Auto Cruise	2 patterns, 40 points each
Auto Home	Configurable (1～60 min)
Auto Scan	1 pattern
Salt Spray Resistance	No significant surface change after 48hrs continuous spray (PH 6.5-7.2).
Communication Protocol	PELCO_D
Baud Rate	9600bps(2400/4800/115200bps)
Communication Interface	RS422
Power Supply Voltage	DC 24V
Power Consumption	≤ 150W (Operating)
Temperature	-40℃～+65℃(working),-25℃～+65℃(storage)
Payload	30 kg

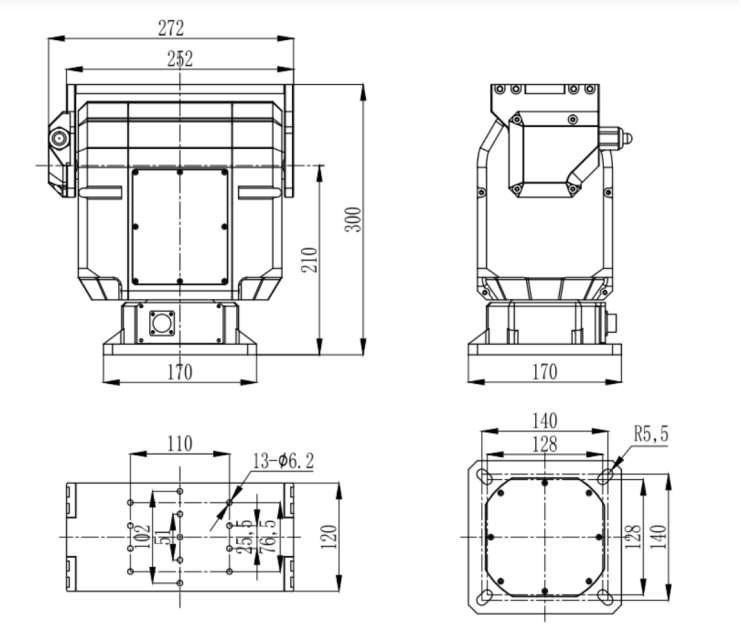

Dimensions (LWH)	272 x 270 x 300 mm
Weight	14 kg
Mounting Type	Top Mount
Self-Locking	Support
Ingress Protection (IP)	IP66
Installation Environment	Fixed Installation
System Type	Open-Loop System (No Encoder)
Top Cable Pass-through	1x Gigabit Ethernet Passthrough Signal Cable (8-core) 1x DC24V Output Power Cable (15A)
Bottom Cable Pass-through	1x Gigabit Ethernet Passthrough Signal Cable (8-core) 1x DC24V Input Power Cable (System Power) 1x RS422 (Unit Communication)

Heavy Duty 30kg Payload Pan Tilt Unit with 360° Continuous Rotation and IP66 Protection

Company:

Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments. Heavy Duty 30kg Payload Pan Tilt Unit with 360° Continuous Rotation and IP66 Protection
